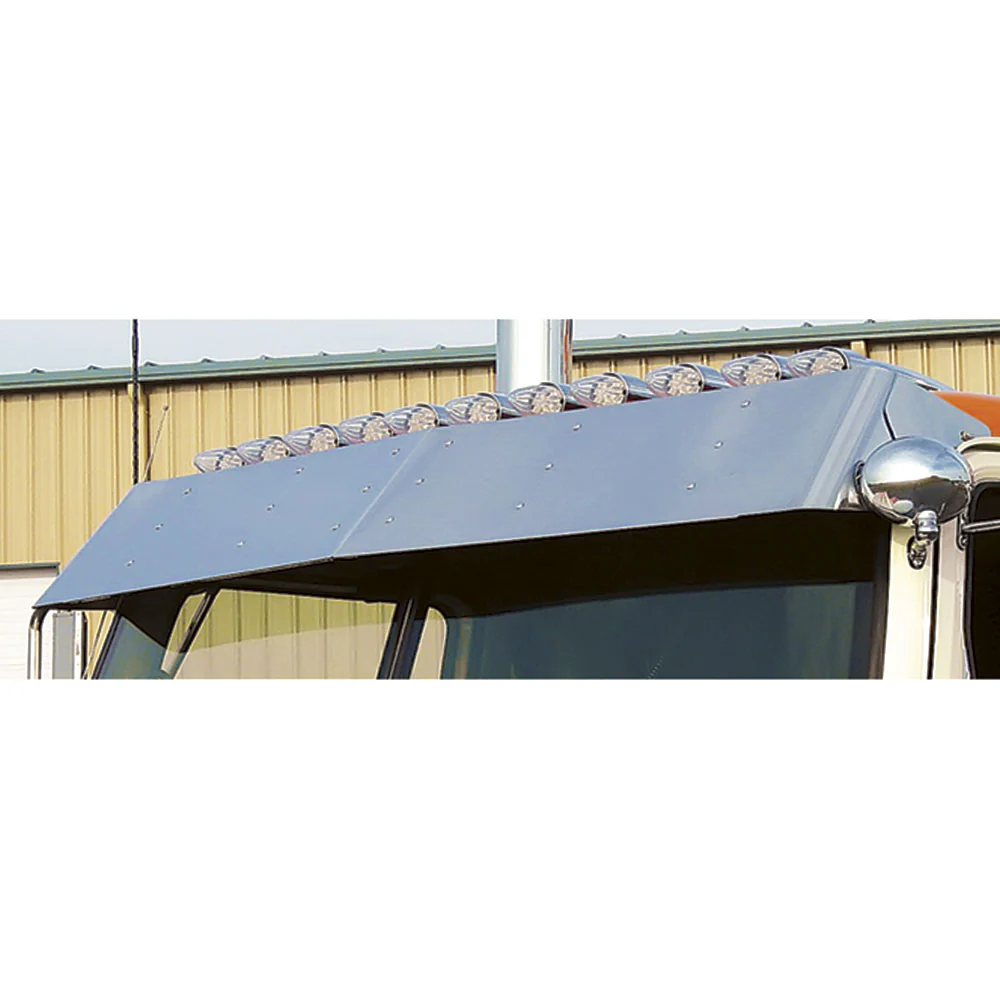

Western Star 4900 Flat Top 13.5" Drop Visor (1997 and newer)

Beat the heat with a 13-1/2" stainless steel drop visor. Replaces OEM factory stainless steel visor with 5 brackets. Installation hardware and brackets included in kit.

Fits Western Star 4900 series 1997 and newer with flat top and door mounted mirrors.

NOTE: Does not fit trucks with cab mounted mirrors or Stratosphere sleeper or Heritage models.

Installation Instructions:

1. Remove the existing visor
2. Install the -01 bracket  on the center factory holes
3. Install the  -14 and -16 brackets on the middle factory holes
4. Install the  -23 and -25 brackets on the outer factory holes
5. Install the  -17 and -18 brackets onto the -01 center bracket. Mark the hole above the visor and  drill  it  out to a 1/2", then install the rubber well nut into the hole
6. Install the visor skins onto the brackets using the hardware provided

NOTE: The brackets with the lower number are driver side, higher number are passenger side
